Regency Rim Latch

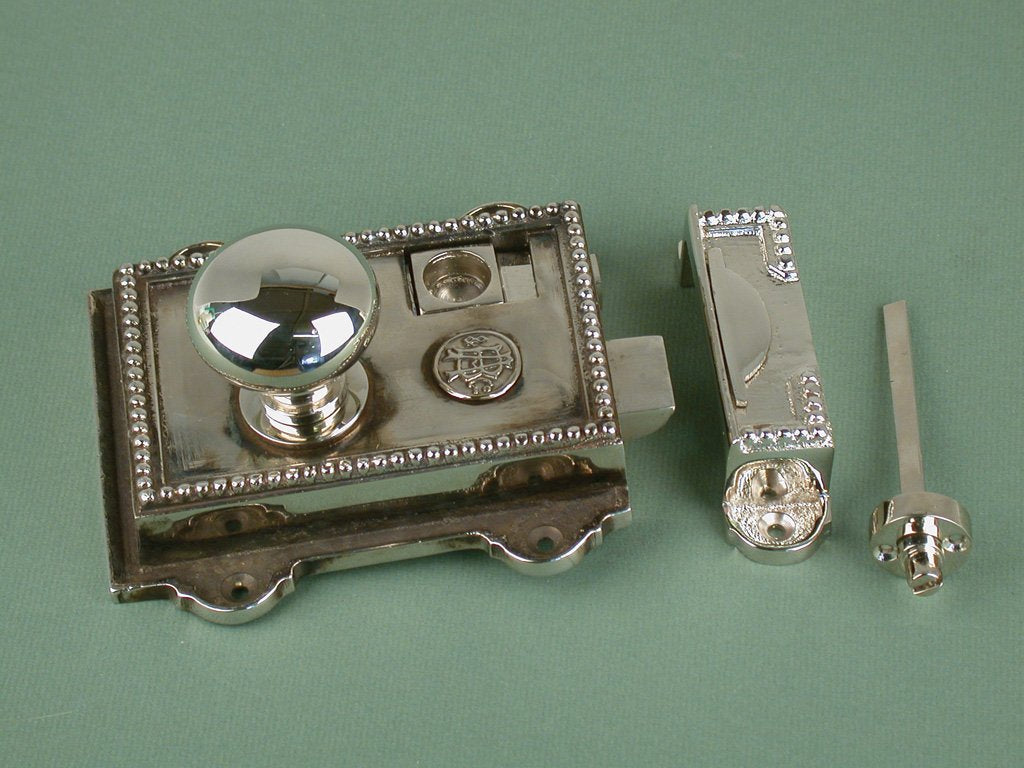

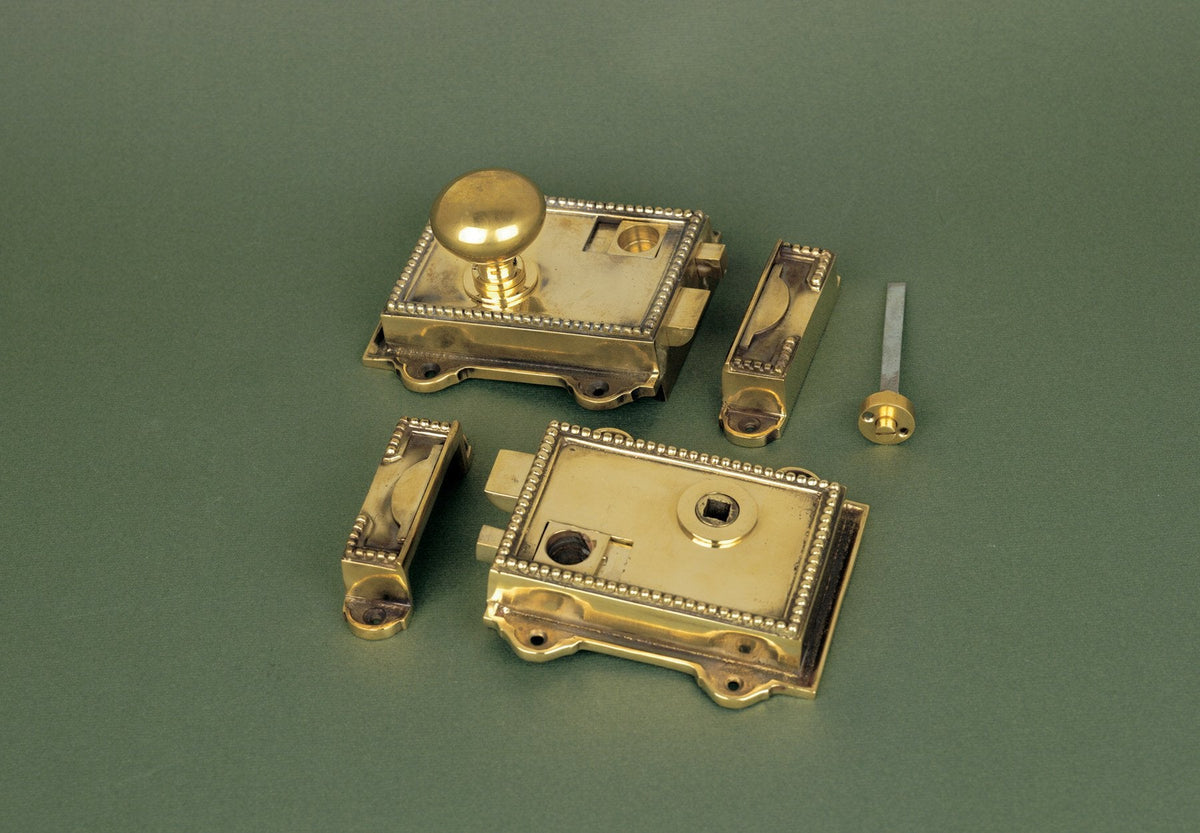

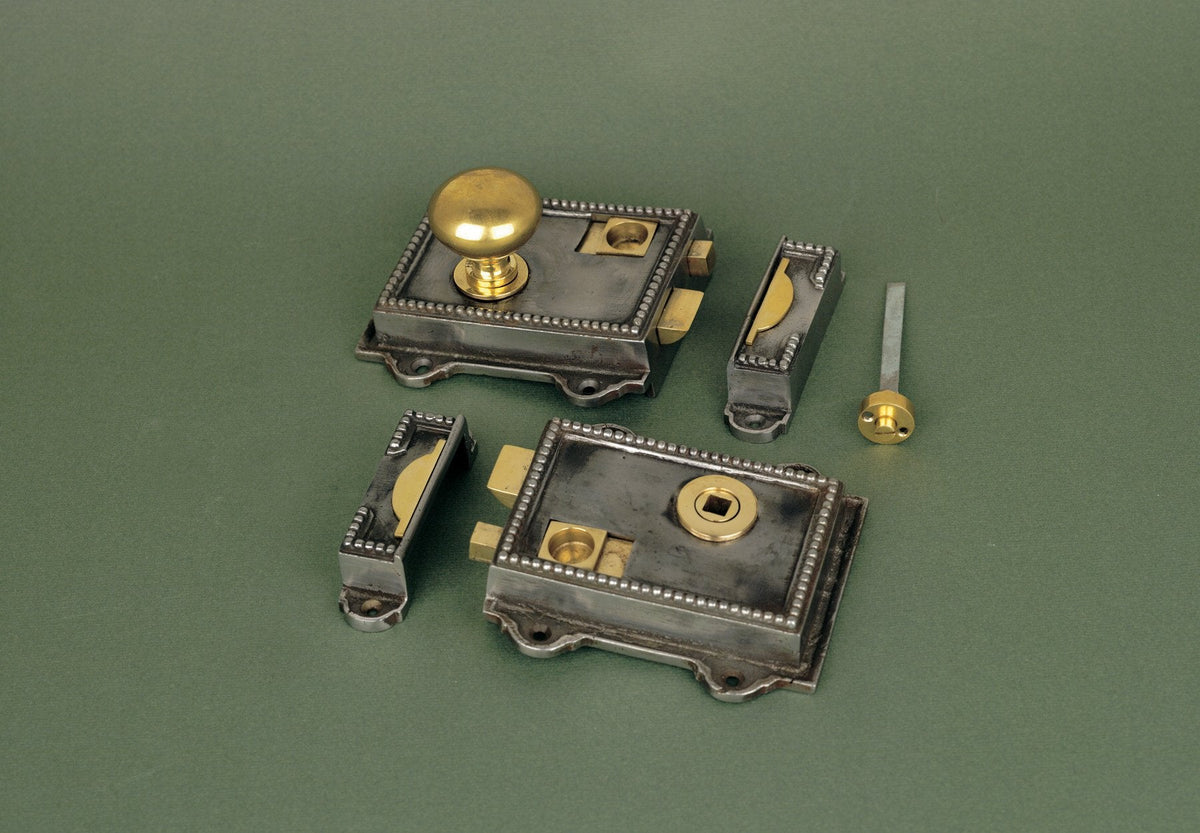

Available in a choice of three un-lacquered ‘hand-aged’ finishes – cast brass, cast iron with brass fittings or nickel plated brass.
All are dual handed, have a traditional thumb nail rim latch and come complete with an emergency release (facilitating access from outside the room).
Each latch comes boxed with screws, full fitting instructions and template. The latch bolt (on all designs) is able to be reversed to accommodate doors which open inwards or outwards.
Lock Body – 108mm (H) x 115mm (W). Projection – 27mm
Backset (spindle centre to edge of door): 65mm
Keep – 99mm (H) x 24mm (W). Projection – 27mm
Springlatch – able to be reversed
All products un-lacquered
Weight (boxed): 900g
Max recommended rose size when using emergency release: 42mm
