The Boss TS2224 Overhead Door Closer is a dependable rack and pinion door closer designed for commercial, residential, and contract applications where controlled closing, durability, and compliance are essential. With its semi-radius cover and matching arm, it offers a neat, professional appearance while delivering the robust day-to-day performance needed for doors in regular use. The TS2224 is especially well suited to projects where a reliable surface-mounted overhead door closer is required with the added benefit of adjustable backcheck.
This model features variable power size EN 2-4, making it suitable for a wide range of door sizes and site conditions. It is designed for doors up to 1100mm wide and 80kg, with a minimum door width of 360mm. The closer is non-handed and suitable for regular fig 1, fig 6, and fig 61 applications, giving installers greater flexibility across different door configurations. It also includes a power shoe bracket, with power adjustable by spring, helping to fine-tune performance on site.
For smooth and controlled operation, the Boss TS2224 includes adjustable sweep speed, adjustable latch speed, and adjustable backcheck. The backcheck function makes it particularly useful in busy environments where doors may be opened with force, helping to reduce stress on the door, frame, and surrounding ironmongery. With an angle of opening up to 180° in fig 1 applications, it is a practical choice for many frequently used internal and entrance doors.
From a specification point of view, the TS2224 is a strong contract-grade option. It carries Certifire approval CF6470, is listed as CE and UKCA for fig 1 / fig 6 / fig 61 applications, and is suitable for timber fire doors up to 120 minutes. It also offers high corrosion resistance and is backed by a 10-year guarantee, making it a solid choice for projects where long-term reliability matters.
Available in four stock finishes, the Boss TS2224 door closer is ideal for apartments, offices, public buildings, and other high-traffic environments where performance and appearance both count. For specifiers, contractors, and joinery professionals looking for a fire door closer with backcheck, the TS2224 offers an excellent balance of value, flexibility, and tested performance.
Key Features
- Surface-mounted overhead door closer
- Variable power size EN 2-4
- Rack and pinion mechanism
- Suitable for doors up to 1100mm
- Suitable for door weights up to 80kg
- Minimum door width 360mm
- Non-handed
- Suitable for fig 1, fig 6, and fig 61 applications
- Adjustable sweep speed
- Adjustable latch speed
- Adjustable backcheck
- Power adjustable by spring
- Power shoe bracket included
- Semi-radius cover
- Matching cover and arm
- High corrosion resistance
- Certifire Approved CF6470
- Suitable for timber fire doors up to 120 minutes
- CE and UKCA
- 10-year guarantee

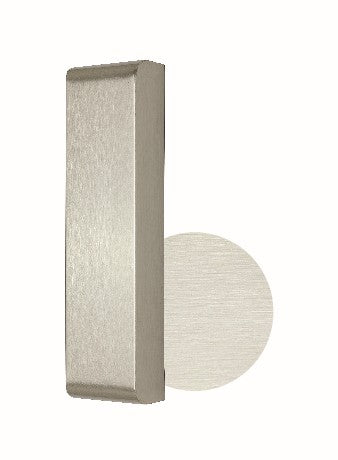

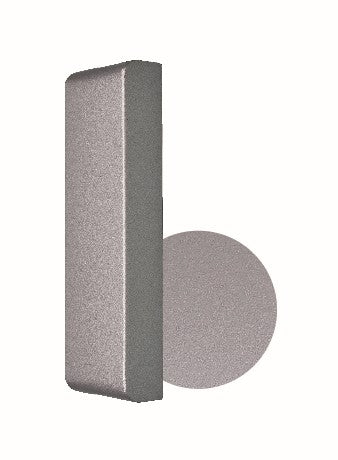

- Available in 4 stock finishes
