The Ghost Concealed Hinge CH60 is a premium, heavy-duty concealed hinge designed for internal residential and commercial doors where strength, durability, and a sleek hidden finish are essential. Offering a completely flush appearance, this hinge is fully 3D adjustable for height, depth, and lateral movement, ensuring precise alignment during installation.

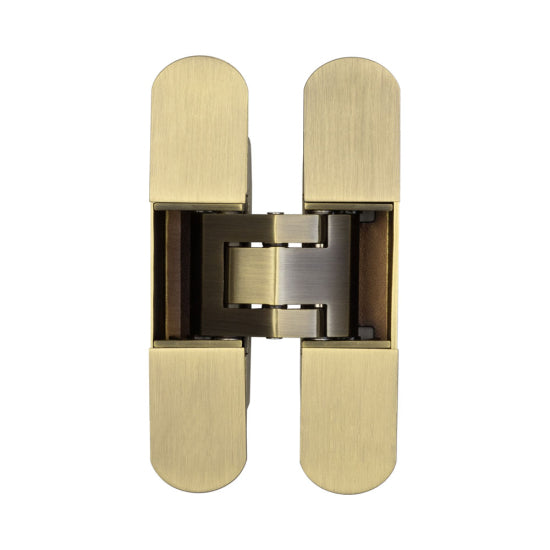

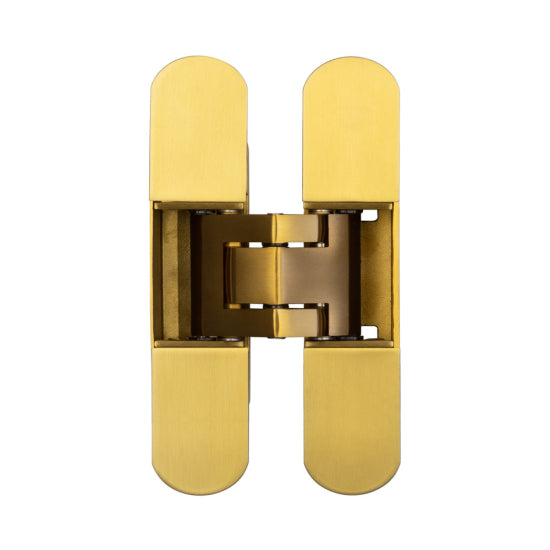

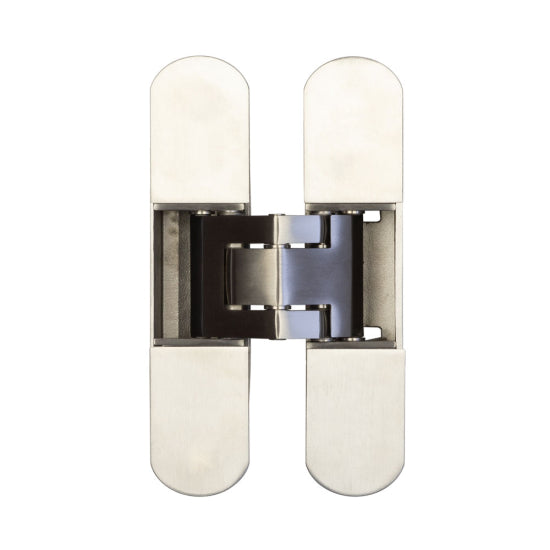

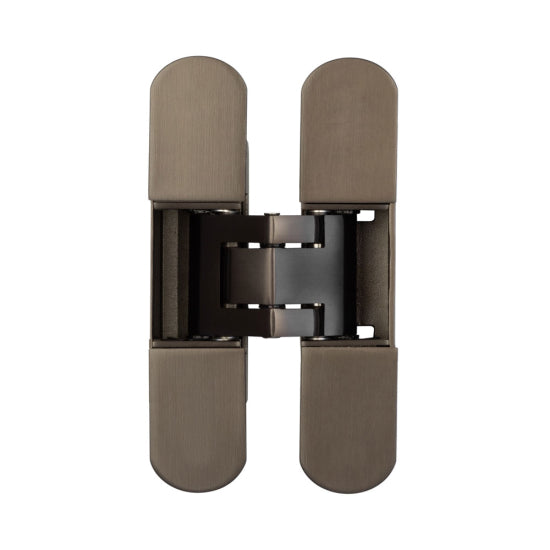

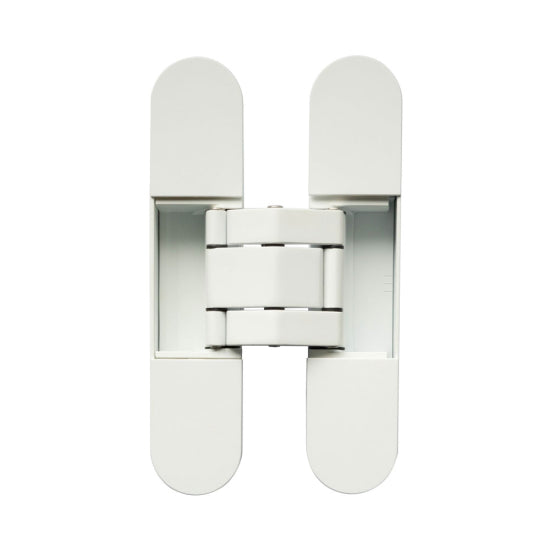

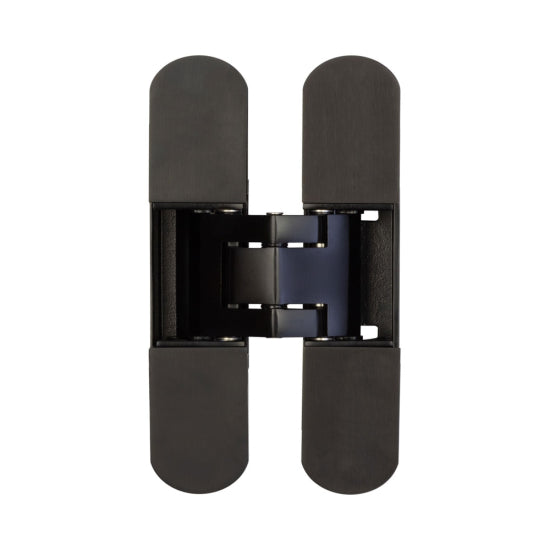

Built from high-quality zinc and available in a wide range of finishes – Antique Brass, Black, Dark Bronze, Satin Brass, Satin Stainless Steel, White, and Silver – the CH60 delivers both performance and style. Its removable cover plates conceal fixings for a clean, minimalist look.
When fitted with three hinges, the Ghost CH60 supports doors up to 60kg, making it suitable for flush timber doors in both modern residential interiors and high-traffic commercial environments. It is also FD30 fire-rated when used with a 1mm Graphite Flexifire (sold separately).
Key Features
-
🔹 Premium concealed hinge – flush, hidden design for sleek doors
-
🔹 3D adjustable – height, depth, and lateral movement for perfect installation
-
🔹 Heavy-duty performance – supports up to 60kg (with 3 hinges)
-
🔹 Durable zinc construction with multiple finishes: Antique Brass, Black, Dark Bronze, Satin Brass, Satin Stainless Steel, White, Silver
-
🔹 Concealed fixings – removable cover plates for a clean look
-
🔹 Fire Rated FD30 with 1mm Graphite Flexifire (sold separately)
-
🔹 Suitable for flush, unrebated timber doors – residential or commercial use
-
🔹 Maintenance free with a 5-year mechanical warranty

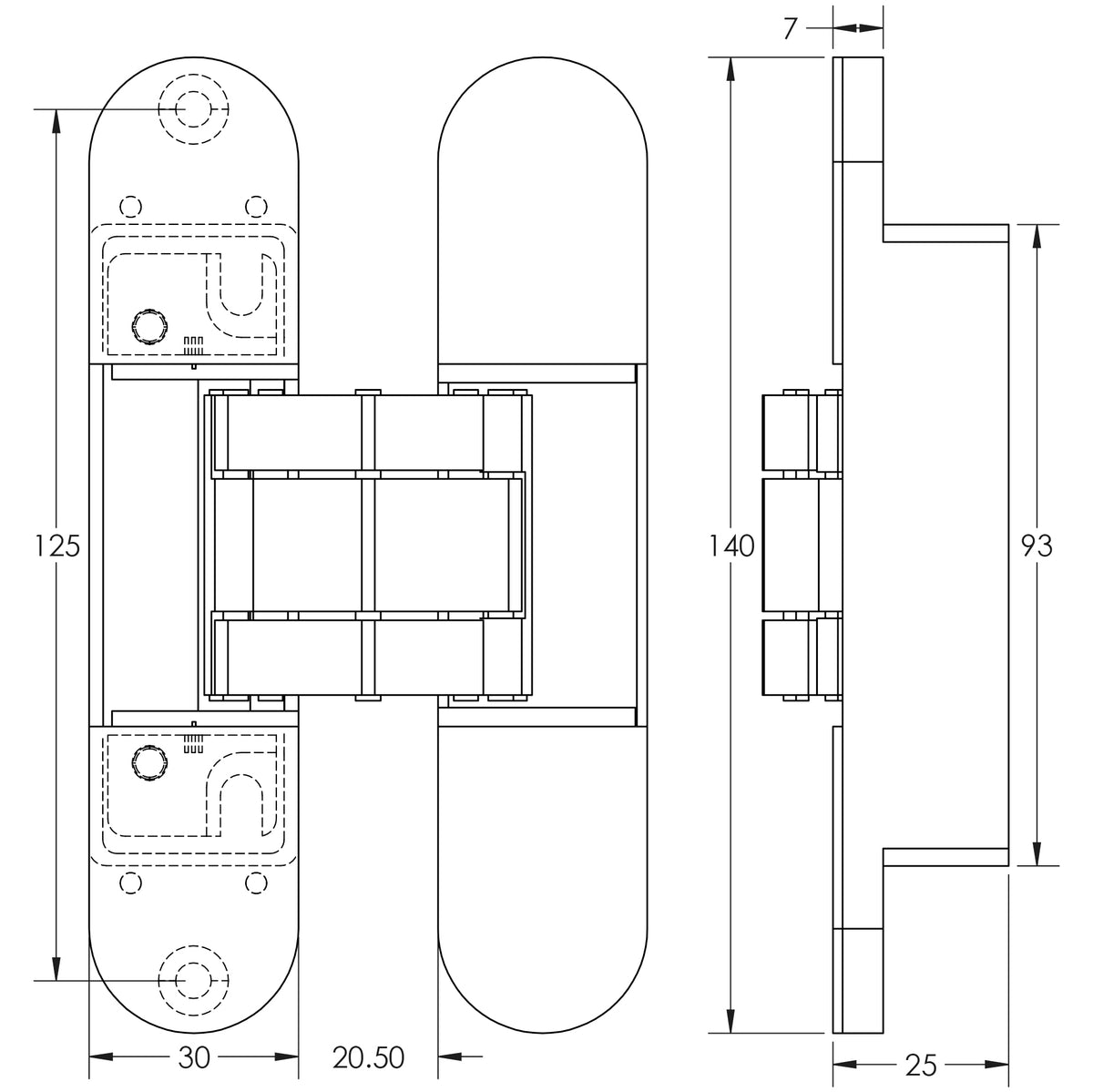

Specifications
-
Size: 140mm (Overall: 140 x 25 x 79.5mm)
-
Projection: 7.5mm
-
Fixing Centres: 125mm
-
Thickness: 7mm
-
Suitable Door Thickness: 30–44mm
-
Supplied with: 2 Allen keys, 8 stainless steel screws, 4 cover plates
