The Ghost Concealed Hinge CH100 is a premium, heavy-duty concealed hinge designed for internal residential and commercial doors where strength, durability, and a sleek flush finish are essential. Offering a completely hidden appearance, this hinge is fully 3D adjustable for height, depth, and lateral movement, ensuring precise alignment during installation.

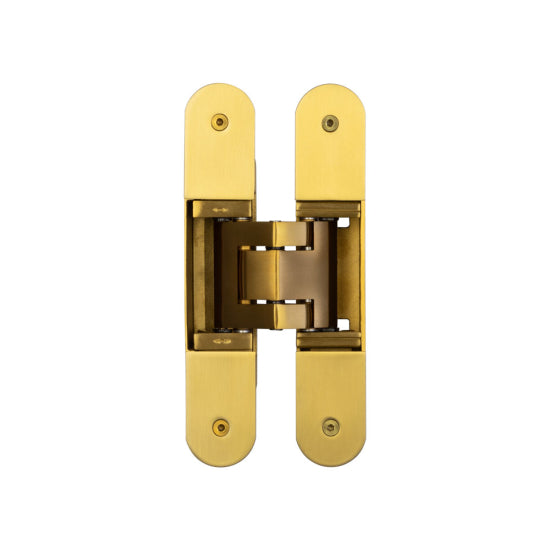

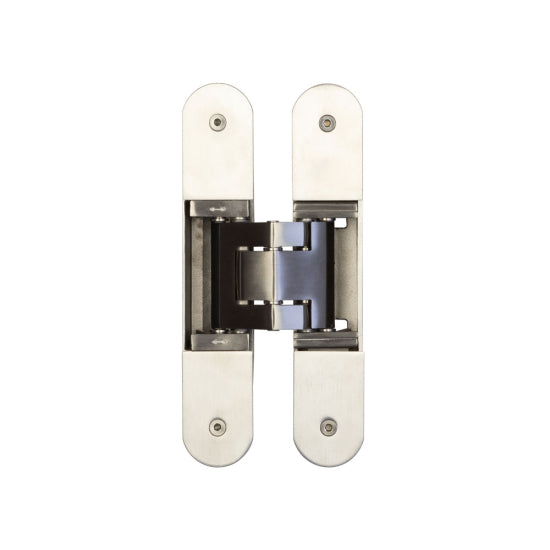

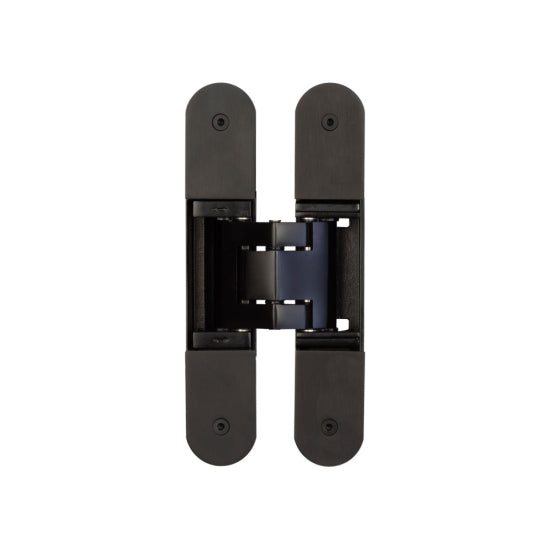

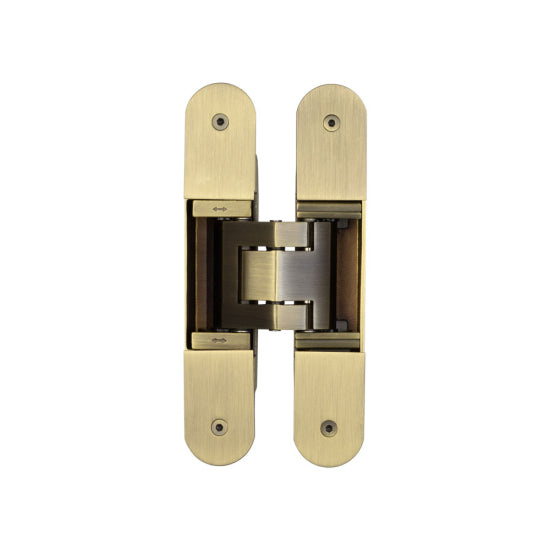

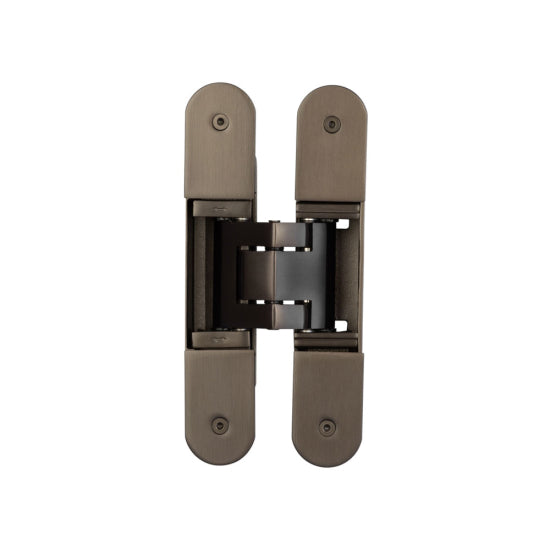

Manufactured from 304g stainless steel and available in a range of stylish finishes – Antique Brass, Black, Dark Bronze, Satin Brass, Satin Stainless Steel, White, and Silver – the CH100 combines performance with design flexibility. Its removable cover plates keep fixings discreetly concealed, creating a clean and minimalist look.
When fitted with three hinges, the Ghost CH100 supports doors up to 120kg, making it ideal for flush timber doors in both modern residential settings and high-traffic commercial environments. It is also FD60 fire-rated when used with a 2mm Graphite Flexifire (sold separately).
Key Features
-
🔹 Premium concealed hinge – hidden, flush design for sleek interiors
-
🔹 3D adjustable – height, depth, and lateral movement for perfect alignment
-
🔹 Heavy-duty performance – supports up to 120kg (with 3 hinges)
-
🔹 304g stainless steel construction with multiple finishes: Antique Brass, Black, Dark Bronze, Satin Brass and Satin Stainless Steel.
-
🔹 Concealed fixings – removable cover plates for a clean finish
-
🔹 Fire Rated FD60 with 2mm Graphite Flexifire (sold separately)
-
🔹 Suitable for flush, unrebated timber doors – residential or commercial applications
-
🔹 Maintenance free with a 5-year mechanical warranty
Specifications
-

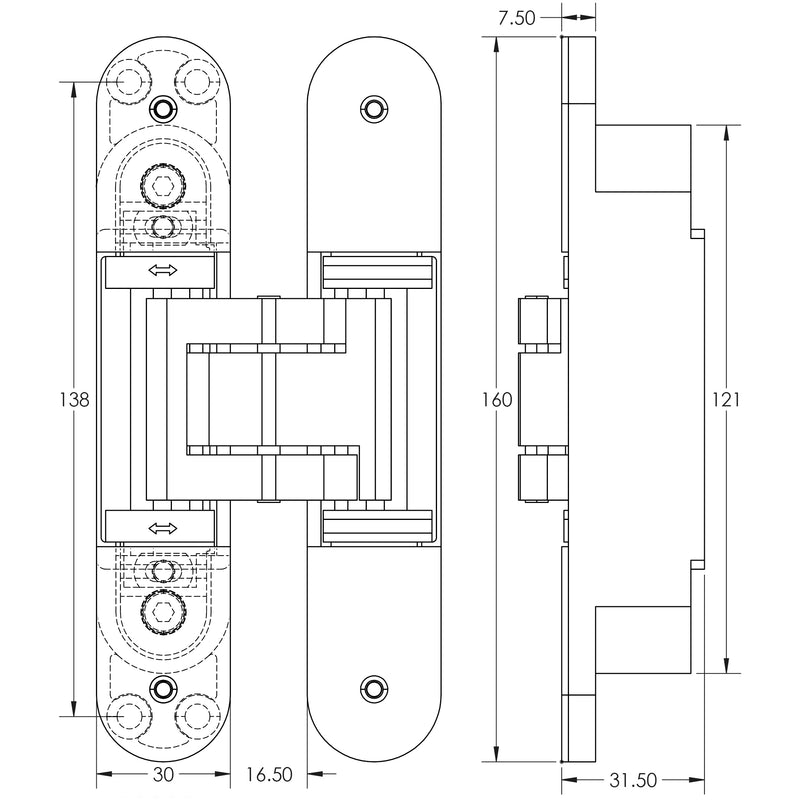

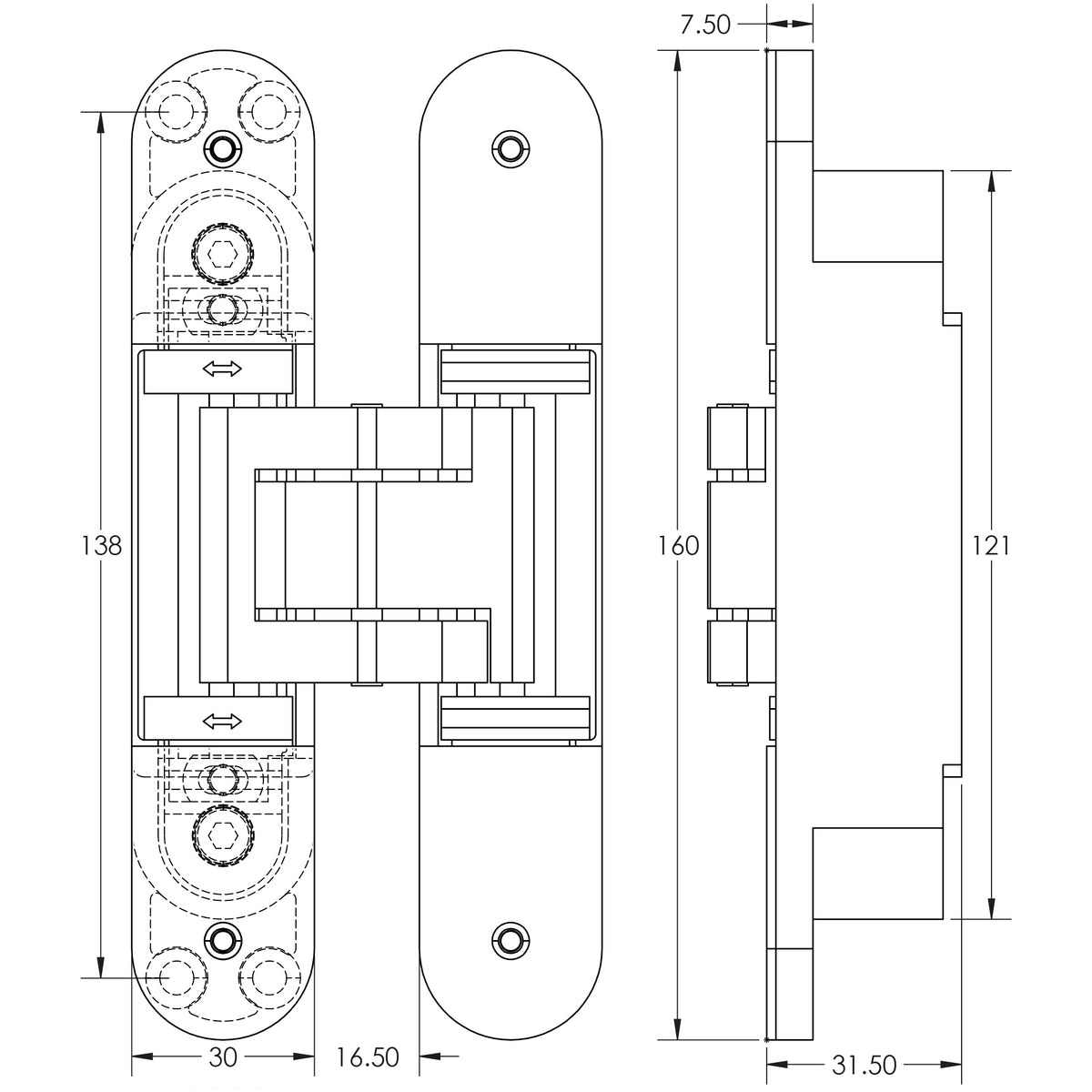

Size: 160mm (Overall: 160 x 31.5 x 76.5mm)
-
Projection: 7.5mm
-
Fixing Centres: 138mm
-
Thickness: 7mm
-
Suitable Door Thickness: 35–54mm
-
Supplied with: 2 Allen keys, 8 stainless steel screws, 4 cover plates
